商品の詳細:
|
|
| モデル番号: | FM20/FM30 |
|---|---|
|
お支払配送条件:
|
|
| 価格: | 交渉可能 |
| パッケージの詳細: | 通常パッケージ |
| 受渡し時間: | 1～2日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 30 |
|
詳細情報 |
|||
| 数量: | 50個 | 関数: | モニターの患者の健康状態 |
|---|---|---|---|
| 在庫あり: | はい | 視野角: | 約。 60° |
| 対応ブランド: | PH | ワレンティ: | 90日 |
| 顧客トレーニング: | オプションの修理後のトレーニング | 配送条件: | DHL、EMS、UPS、ACSなど |
| 状態: | 良い状態で | 配送方法: | DHL、UPS、Federal Express |
| サービスの可用性: | 全世界 | ストック: | 元在庫 |
| スペアパーツ: | オリジナルパーツ | ||
製品の説明
| Part Number | M2705-66410 (also listed under 451261009061) |
|---|---|
| Function | Controls all primary monitor operations, including signal processing from the fetal probes (ultrasound, TOCO), maternal vital signs modules, and the overall user interface. This is the core logic board. |
| Application | If the monitor fails to boot, has corrupted graphics, or is unresponsive, this is the primary suspect. |
| Part Number | Part of the M4605A / M8023A series (External) |
|---|---|
| Function | This is a wide-range switching power supply. It automatically accepts input from 100V to 240V (±10%) at 50/60 Hz and converts it to the necessary DC voltages (primarily 24V output) to run the main board, display, and thermal recorder. |
| Application | Used for "No Power" or "Intermittent Shutdown" issues. |
| Part Number | M2703-26420 / M2703-66420 |
|---|---|
| Function | This board acts as the physical interface gateway. It is the board where the fetal sensors (TOCO, Ultrasound) and patient cables plug into the front of the monitor. |
| Application | If specific sensors are not being detected (e.g., "Probe Disconnected" error) but the rest of the monitor works, this board may be faulty. |

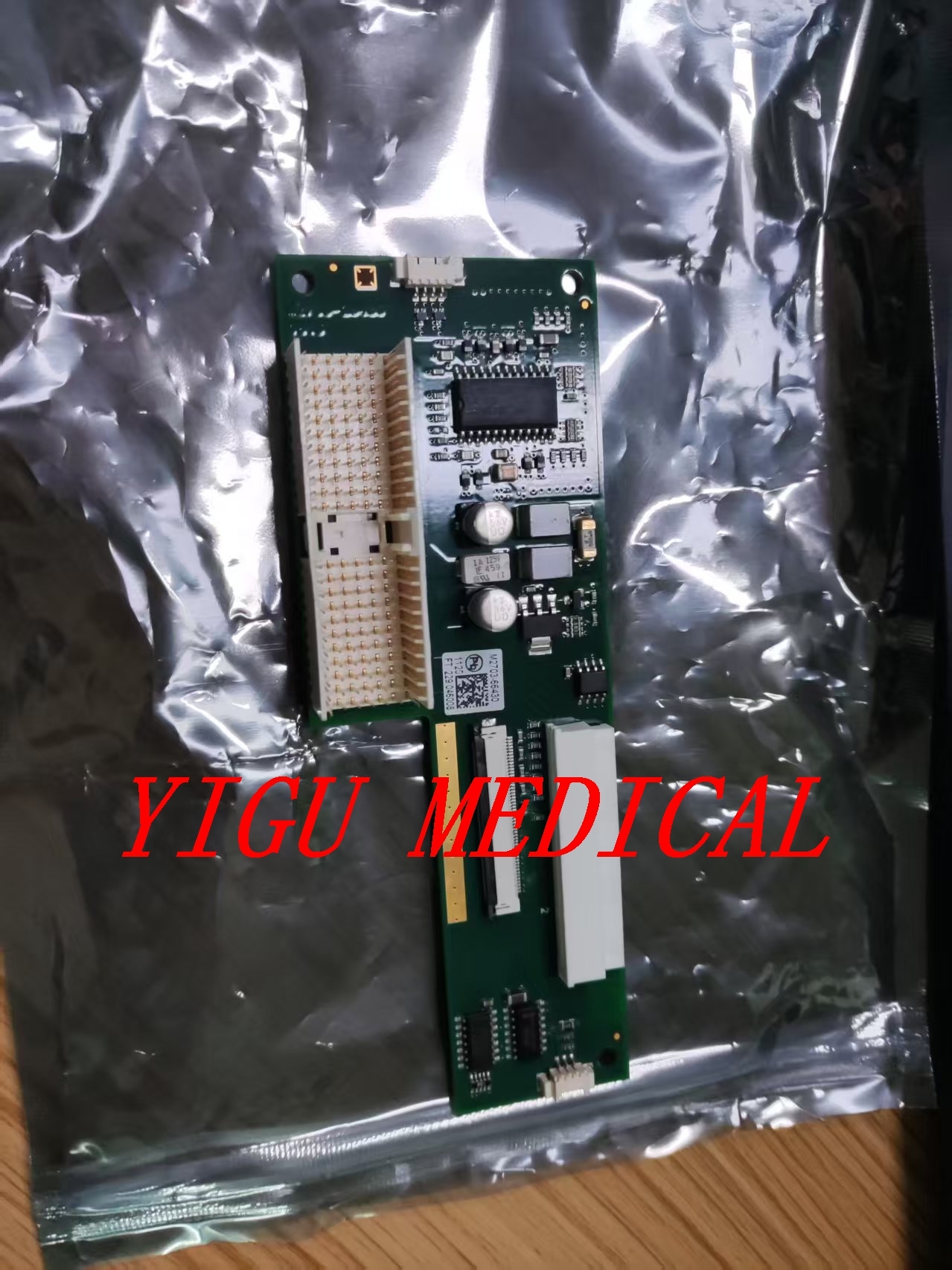

| Part Number | M2703-26440 |
|---|---|
| Function | This is the closest equivalent to a "Touch Drive Board." It controls the touchscreen overlay. It translates your touch inputs into digital signals for the Main Board. |
| Application | If the display works (shows waveforms/numbers) but the screen does not respond to touch, this specific driver board is likely the issue. |
